Semi-automatic Peeling & Crimping Machine

Semi-automatic Peeling & Crimping Machine

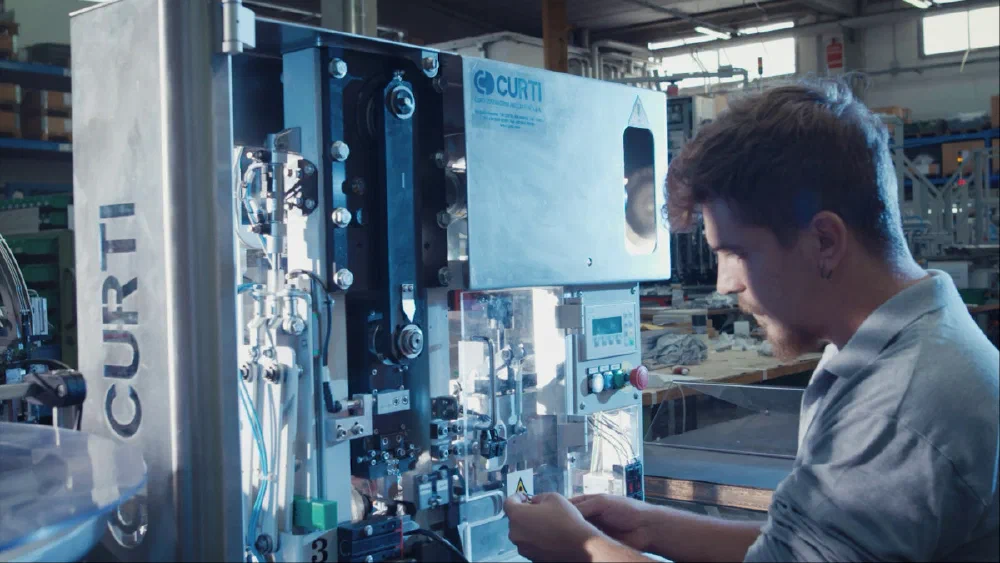

High-performant semi-automatic machine with a production capacity up to 1,000 cables / hour, for flexible processing of bipolar and three-polar cables, previously unsheathed.
The model SSCM is able to process most of the inserts (insert) for power cords: Type A, B, C, E, F, H, I, J, K, L, N, O.
The machine’s simplicity and its user-friendliness put it at the top of the category in terms of speed, flexibility and durability.
The user-friendly wire loading system and fast format change system facilitate the operator both in processing and in the insert change operations.

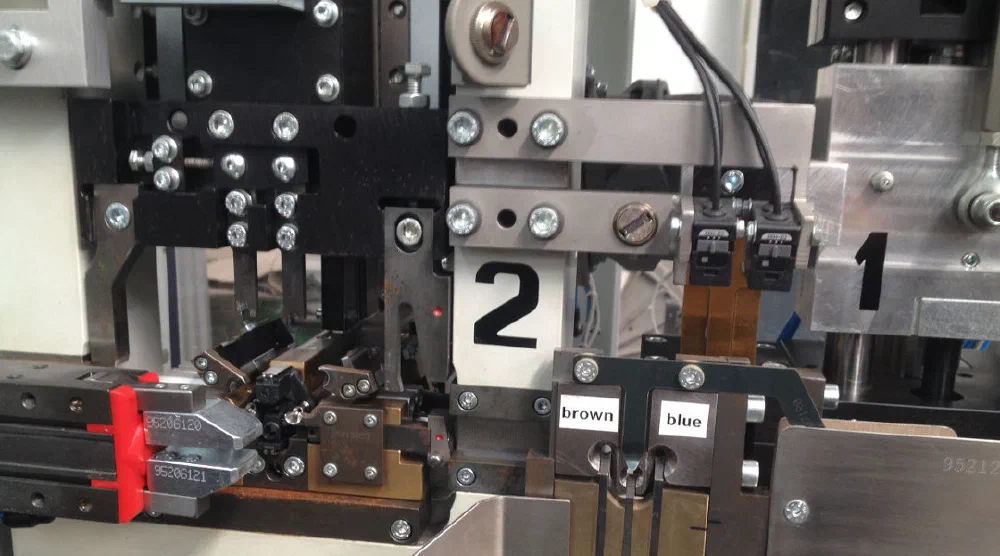

When the operator places the – already stripped – conductors of the cable inside the special centering funnels, the sensor detects the presence of the cable in the correct position and initiates the automatic cutting and peeling working cycle.
In the case of a processing on a three-pole cable it is possible to equip the machine with a colour recognition sensor, which prevents the process performance wherever the colour sequence is incorrect.
The machine can be fitted with load cells CFM (optional) to monitor the status of the crimping tools.

Technical specifications
Workable cables 2 x 0.75 – 2 x 1.0 – 2 x 1.5 mm2
3 x 0.75 – 3 x 1.0 – 3 x 1.5 mm2
Max productivity. 1000 pieces / hour
